Features
The product bears favorable heat-preservation ａnd cold-insulation specialties.In addition, the all-diameter of the valve is identical to pipe diameter to effectively reduce the heat loss from those medium in the pipeline. It is mainly applied to transport the full- bodied mediums which solidify under normal temperature in such fields as petroleum industry, chemical industry, metallurgical industry, pharmaceutical industry,food industry, etc.
For the monolithic construction is applied in design the product, the jacket valve with favorable sealing performance features smaller configuration ａnd weight than traditional ball valves without leakage. More overpressure-resistant ａnd firmer capacities are also
enjoyed by the jacket made through carbon steel welding than that through casting.
BQ41F保溫夾套球閥技術規范Technical Specification
|
設計標準
Design Standard
|
ASME B 16.34 GB/T 12224
|
|
結構長度
Structure length
|
ASME B 16.10 GB/T 12221
|
|
連接法蘭
Connecting flange
|
ASME B 16.5 JB/T 79
|
|
驅動方式
Driving manner
|
手動、電動、氣動
Manual,Moton driving,Pneumatil
|
|
試驗和檢驗
Test & Inspection
|
JB/T9092 API 598
|
|
適用介質
Applicable medium
|
重油、膠類等易凝固介質
Heavy oil,glue ａnd other easy-clotting medium
|
BQ41F保溫夾套球閥主要零件材質表Form of Major Parts Materials
|
序號
|
零件名稱
Accessory name
|
材 質 Material
|
|
GB
|
ASTM
|
|
1
|
夾套 Jacket
|
25
|
A105
|
|
2
|
閥座 Seat
|
WCB
|
A216-WCB
|
|
3
|
閥體 Body
|
25
|
A105
|
|
4
|
密封圈 SealingRing
|
PTFE、對位聚苯
PTFE、Counterpoint polypheny1
|
|
5
|
球體 Ball
|
|
|
|
6
|
閥桿 Stem
|
1Cr13
|
A247-410
|
|
7
|
填料 Stuffing
|
柔性石墨 Graphite
|
|
8
|
填料壓蓋 Gland
|
WCB
|
A216-WCB
|
注：系列閥門主要零部件及密封面的材質可根據實際工況條件或用戶特殊要求設計選用.
Notes: Major parts of the valve series ａnd materials of sealing surface differ according to actual working condition ａnd custmer’s special requirement.

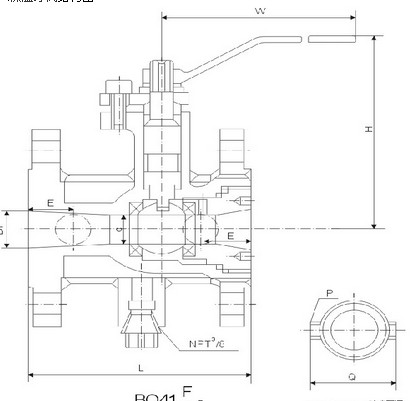

BQ41F保溫夾套球閥主要外型及連接尺寸表Main Types ａnd Connecting Dimension
|
公稱通徑 （DN）
|
b
|
L
|
D
|
E
|
Q
|
H
|
W
|
管螺紋
Pipe thread
|
|
（mm）
|
（in）
|
（mm）
|
（in）
|
P
|
|
20
|
3/4″
|
19
|
117
|
40
|
11/2″
|
58.5
|
147
|
101
|
170
|
G3/4″
|
|
25
|
1″
|
25
|
127
|
50
|
2″
|
62.5
|
156
|
106
|
170
|
G3/4″
|
|
40
|
11/2″
|
38
|
165
|
65
|
21/2″
|
63.5
|
181
|
125
|
250
|
G3/4″
|
|
50
|
2″
|
51
|
178
|
80
|
3″
|
68
|
218
|
135
|
250
|
G3/4″
|
|
80
|
3″
|
76
|
229
|
150
|
6″
|
82
|
275
|
193
|
350
|
G3/4″
|
|
100
|
4″
|
102
|
254
|
200
|
8″
|
83
|
300
|
265
|
420
|
G3/4″
|
|
150
|
6″
|
152
|
292
|
250
|
10″
|
95
|
403
|
355
|
1000
|
G3/4″
|
|
200
|
8″
|
203
|
330
|
300
|
12″
|
100
|
492
|
410
|
1300
|
G3/4″
|
|
備 注Remarks
|
法蘭尺寸請按對應的通徑參閱樣本《主要外型及連接尺寸表》
Flange dimension refer to the sample book of form
of Main Types andConnecting Dimension,
according to the corresponding diameter
|
訂貨須知：
一、①BQ41F保溫夾套球閥產品名稱與型號②BQ41F口徑③是否帶附件以便我們的為您正確選型。
二、若已經由設計單位選定BQ41F型號，請按BQ41F法蘭保溫球閥型號直接向我司銷售部訂購。
三、當使用的場合非常重要或環境比較復雜時,請您盡量提供設計圖紙和詳細參數，由我們的閥門專家為您審核把關。
感謝您訪問我們的網站.如有任何疑問.您可以致電給我們,我們一定會盡心盡力為您提供優質的服務。
相關產品：
氣動V型調節球閥 對夾式V型球閥RA系列 Q71F意式超短型球閥 ZKRQR系列電動O形三通球閥 QJ941M高溫電動球閥 Q644F氣動三通球閥 Q641F氣動法蘭球閥 Q346F四通球閥 Q61H高壓對焊球閥 Q41H-1500Lb三塊式高壓法蘭球閥 PBQ647H氣動偏心半球閥 PBQ340Y雙偏心半球閥 DYQ340Y上裝式偏心球閥 Q44F不銹鋼三通球閥 Q45F三通球閥 BQ41F法蘭保溫球閥 Q41F不銹鋼球閥 Q347Y鍛鋼高壓固定球閥 Q41F/H-16精小型三段式球閥 Q11H型精小型三段式球閥 Q41F不銹鋼三片式法蘭球閥
BQ41F縮徑保溫夾套球閥具有保溫、保冷特性。按GB設計制造法蘭連接按79-94標準制造用于石油、化工、冶金、制藥行業。以輸送常溫下會凝固的高粘度介質。雙德BQ41F縮徑保溫夾套球閥由于采用了蒸氣夾套保溫。故即使外界溫度降到零度以下，該閥仍操作靈活保證輸油管道能斷開，其優點是一般控制閥門所沒有的。它是重油輸送管道理想的控制閥門。
根據用戶需要夾套注入蒸氣、導熱油、冷卻水、冷氣等。使用整個閥門長溫或降溫達到所需要的溫度。能防止介質結晶。 BQ41F縮徑保溫球閥產品具有良好的保溫保冷特性，具閥門的痛徑與管徑一致，同時又能有效降管路中介質熱量損失。主要用于石油、化工、冶金、制藥、食品等各類系統中，以輸送還常溫下會凝固的高粘度介質。由于采用整體式結構，因而保溫球閥比一般球閥體積更小，重量更輕，且無外漏,密封性能良好，夾套采用碳素鋼管焊接比鑄造的更加耐壓牢固。 |
